I can't see the cutting diagram!!

Greetings, I have problems when I ask the program for the cut diagram, it shows me the following error message:

Darn!

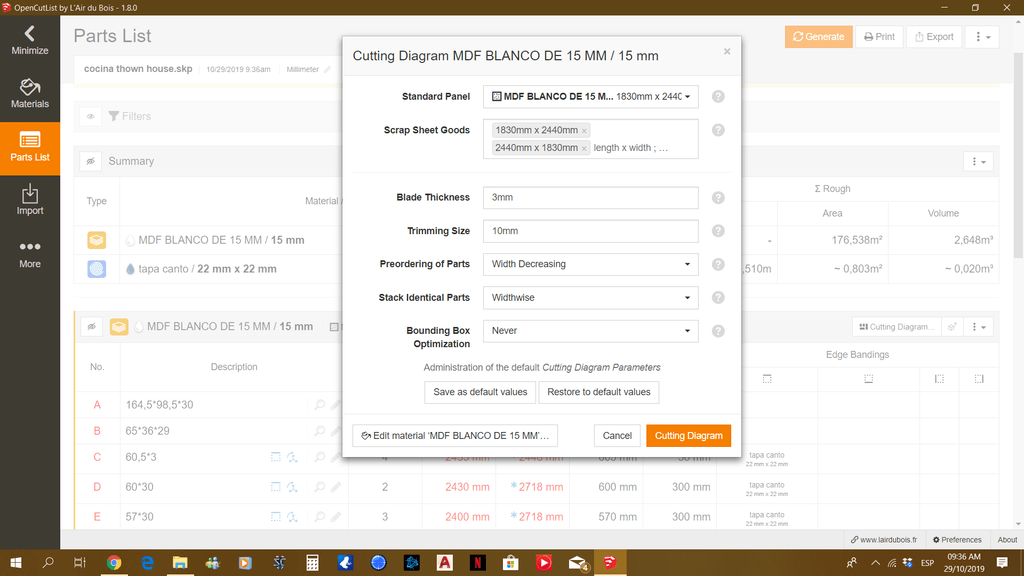

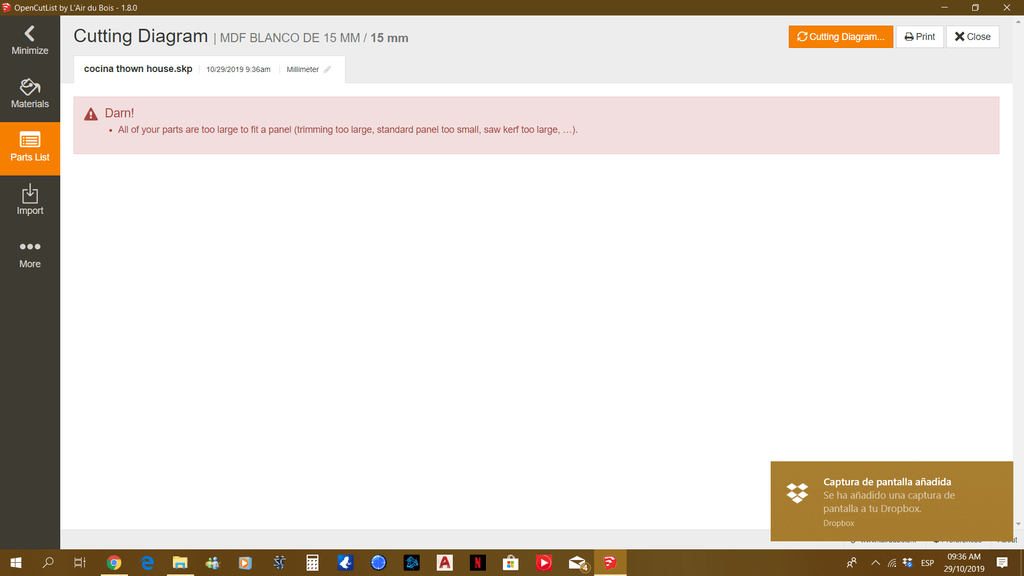

All of your parts are too large to fit a panel (trimming too large, standard panel too small, saw kerf too large, …).

I don't know what I'm doing wrong, but I think the rough measures are very high and I don't know why? Can you help me?.

Connectez-vous pour ajouter un commentaire.
?

1 réponse

0
Boris Beaulant
( Modifié )

First, you need to know that, OpenCutList uses rough dimensions of each part to compute cutting diagrams.

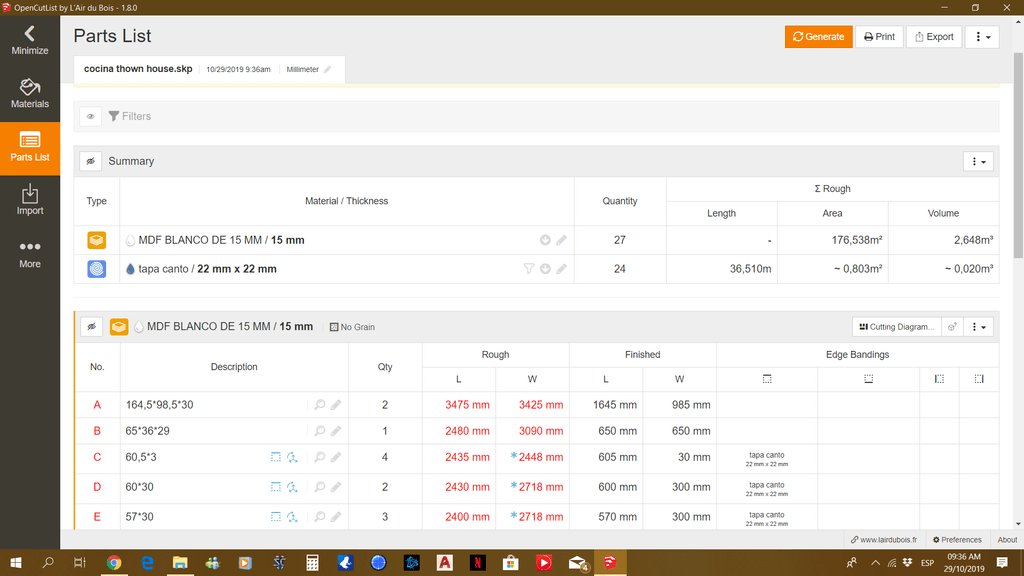

As I can see in your screen captures, your rough dimensions exceed standard sheet size.

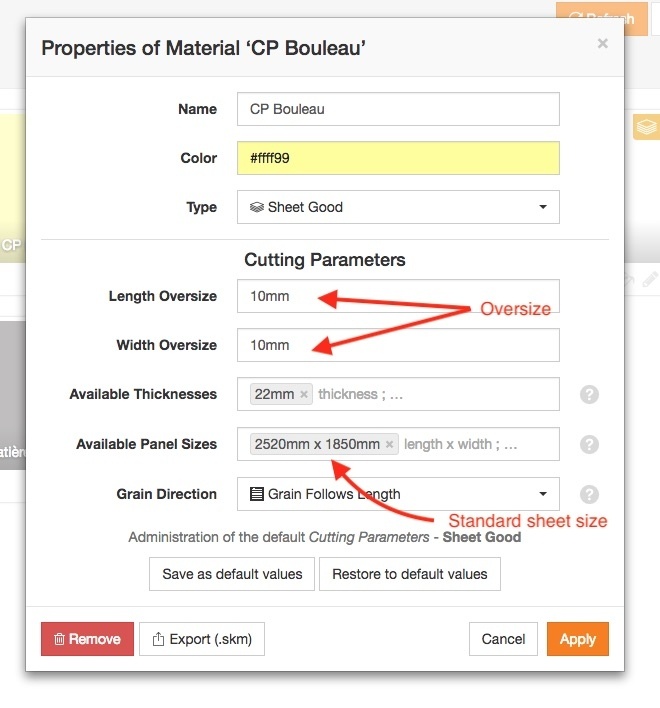

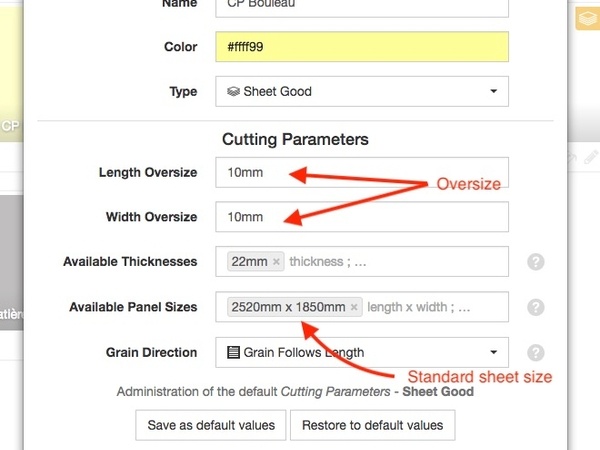

Rough dimensions are computed by adding length and width oversizes defined on material properties to finished dimensions.
After looking to your cut list I can see that you define a length oversize to 1830mm and a width oversize to 2440mm. (Maybe your sheet size written in wrong fields).
Oversizes must be a small value (from 0 to 10mm for example).

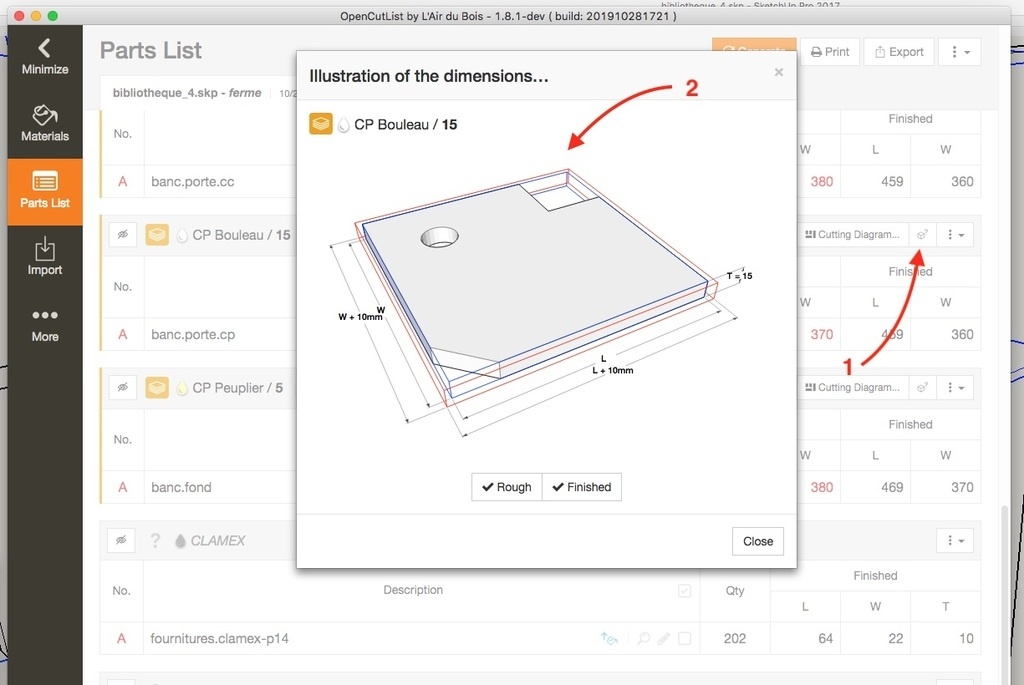

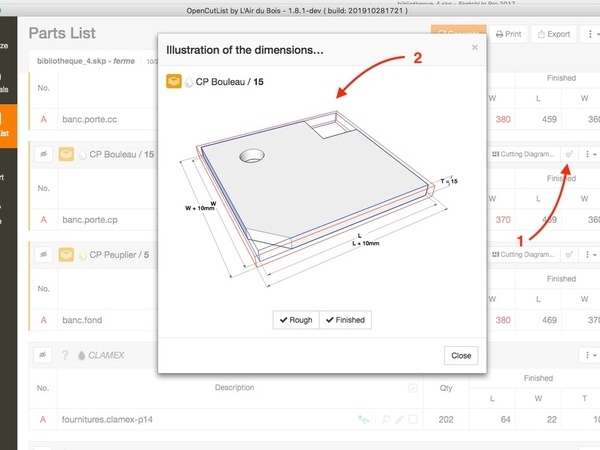

Click on the "Illustrate the dimensions" button to understand all of these dimensions :

Mis à jour
alvaroaha87
( Modifié )

Merci Boris Beaulant !beautiful!! thanks a lots, my English isn't good and I understood wrong the labels...
